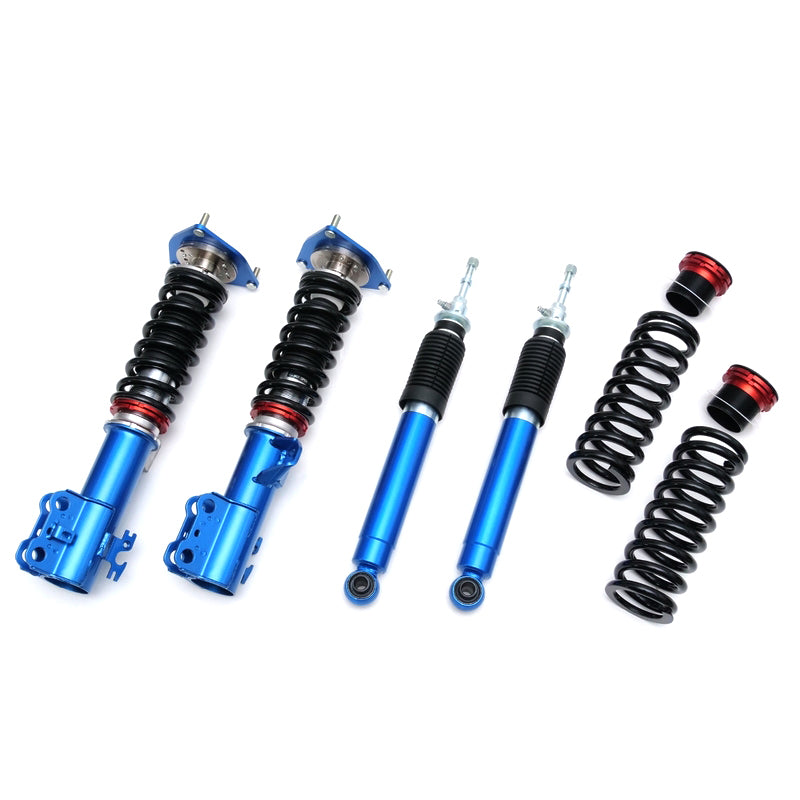

The Street ZERO-A features a full height adjustable system enables the perfect ride height adjustment without sacrificing damper stroke or spring preload. The newly developed 40 way adjustable Twin Tube shock absorber system enables a wide range of suspension setting suitable for virtually any given road condition.
Default Spring Rate:
- Front: 7kgf/mm (Optional 8kgf/mm & 9kgf/mm per request), ID=65mm, L=200mm
- Rear: 8kgf/mm (Optional 7kgf/mm & 9kgf/mm per request), ID=65mm, L=250mm
Default Ride Height (compare to stock):
- Front: -15mm (Adjustable Range -20mm to 0mm)
- Rear: -15mm (Adjustable Range -30mm to 0mm)
Upper Mount:
- Front: Pillowball Adjustable Camber Plate
- Rear: Not included - Utilize Factory Upper Mounts
Front / Rear:
- Twin-Tube 40-way Damper Adjustable
Front:
- Full threaded shock body for ride height adjustment.
Rear:
- Threaded Spring Perch for ride height adjustment
