This AWE line up represents the finest in 3.0T exhaust technology. From Resonated to Non, there's a performance option for every type of 3.0T driver.

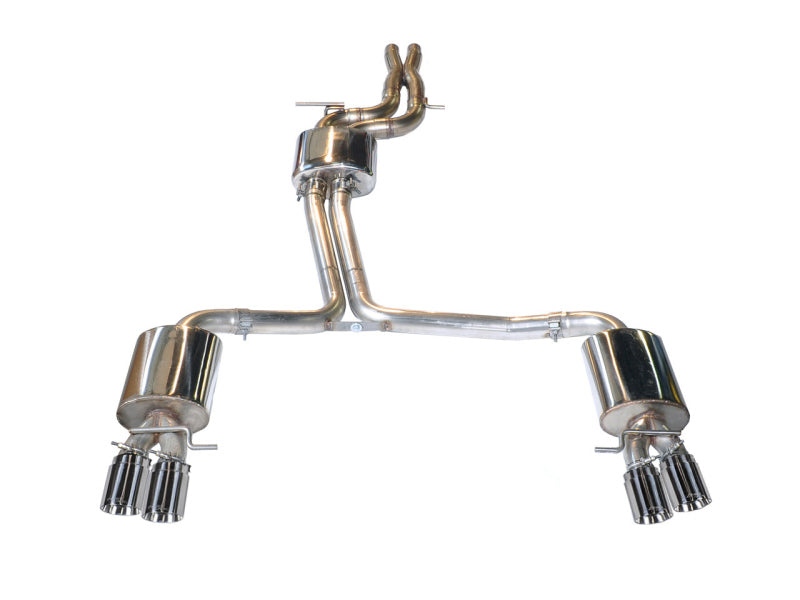

Our 3.0T exhaust system represents the most comprehensive exhaust development project in our company history. The 3.0T systems have paved the way for future exhaust technologies that can now be found in most every AWE exhaust product. We have spent considerable time and effort during development to achieve remarkable civility when idling and at part throttle cruising, while also producing a war-cry wail when full throttle is applied. Hand made in house, these systems command respect while remaining sophisticated, refined, and powerful, all at once.

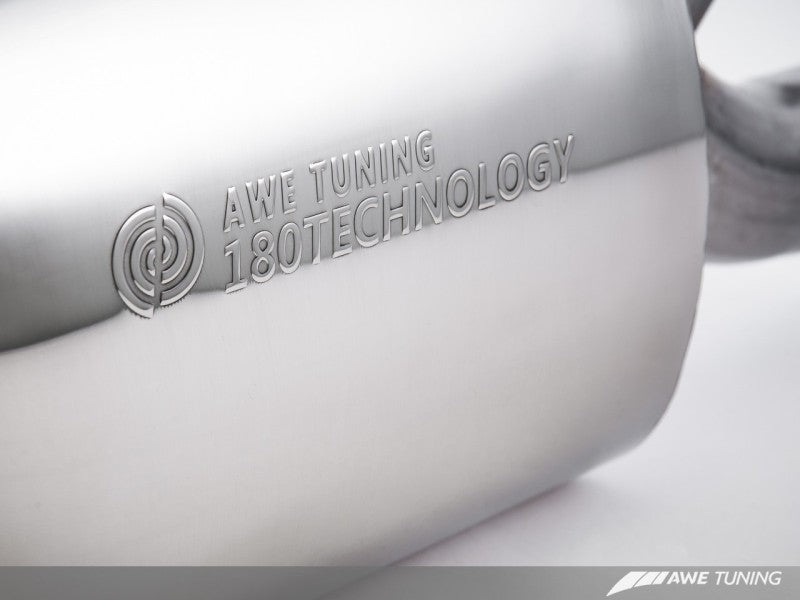

Perfect tone, compliments of AWE 180 Technology®.
As exhaust gases exit the 3.0T engine and flow into an AWE 180 Technology equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves re-join the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on AWE's patented 180 Technology in the tab above.

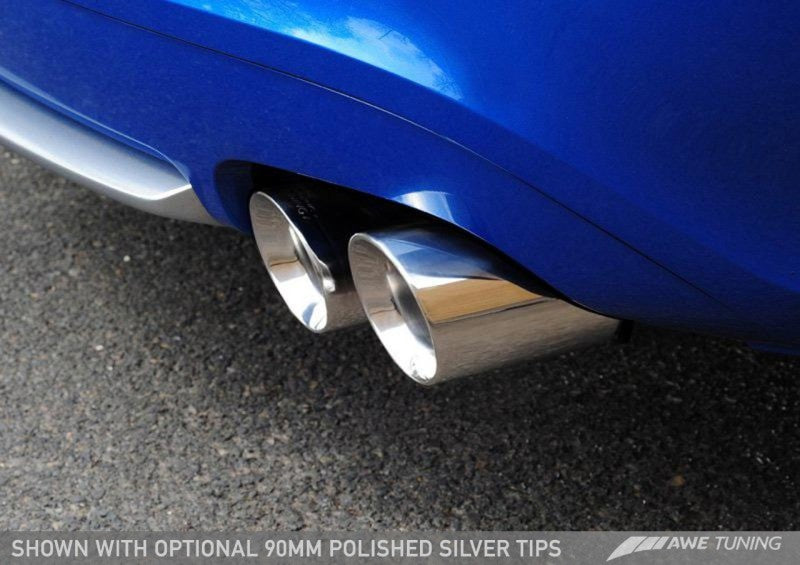

Tip options are as follows - all of which include the AWE logo, and double walling to ensure a mirror finish even under hard usage.
All tips are individually adjustable, so stagger and depth into bumper can be set according to personal taste.

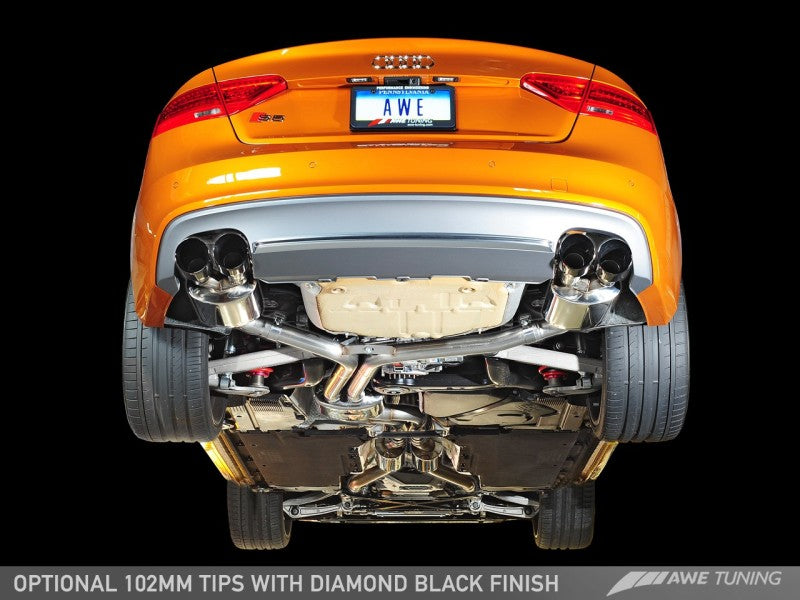

Please note: To accommodate the 102mm tips, the muffler itself had to be re-engineered, and as such, tips cannot be changed from 90mm to 102mm without the purchase of a new rear section of the system.
We offer our Resonated and Non-Resonated Downpipes sold separately. Our Resonated Downpipes (strongly recommended for S-tronic cars) feature resonators larger than the stock units in order to produce a mellow sound volume. Our optional Non-Resonated downpipes are suited for owners seeking a "loud" and aggressive sounding system. Both our Resonated and Non-Resonated Downpipes feature larger than stock tubing diameter.

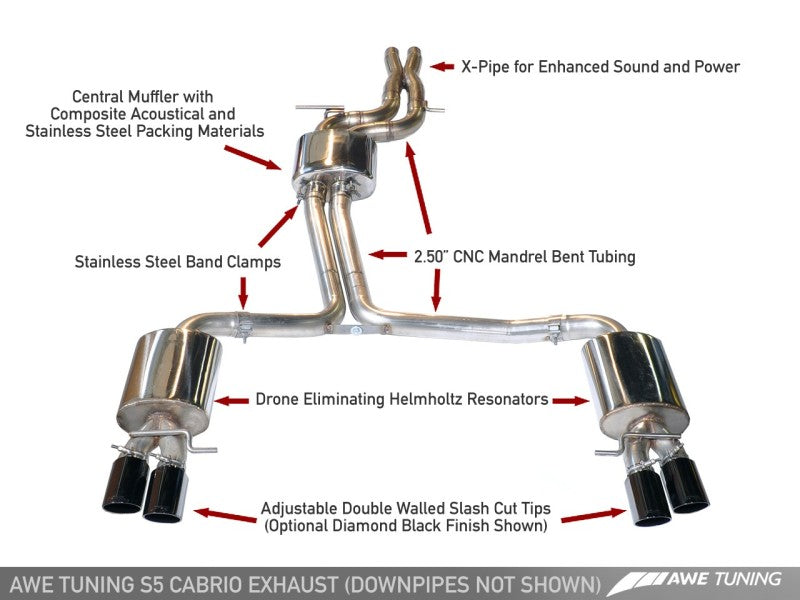

As with all AWE exhaust products, each weld is hand finished internally, and flange openings are size matched to their ports, all to produce the smoothest flow possible. It is this intensive attention to detail that sets AWE exhaust products heads and shoulders above the rest.
Note: In limited cases, the factory downpipes have been known to emit minor rattling noises when paired with the AWE S5 Touring Edition exhaust system. The possibility of rattling is eliminated with the addition of AWE downpipes.
Installation Instructions for the AWE Tuning 3.0T S5 Touring Edition Exhaust (90mm Tips)
Installation Instructions for the AWE Tuning 3.0T S5 Touring Edition Exhaust (102mm Tips)
