Damond Motorsports Focus ST Brake Caliper Bushings

We are excited to bring a low-cost performance brake modification to your Focus ST! The Damond Motorsports Caliper Bushings have many amazing benefits over the factory style rubber slide bushings. Each bushing is machined to very tight tolerances to allow significantly less caliper deflection under braking. This in turn leads to many performance gains, that you can actually feel and experience on your car. Whether you daily drive or track/race your vehicle, you'll be confident in your stopping ability with the Damond Motorsports Caliper Bushings.

Brake bushing benefits:

• Improved pedal feel
• Improved brake modulation
• Improved braking response
• More even pad wear
• More even rotor wear
• Longer maintenance intervals compared to non-sealed bushings

Brake bushings info:

• Sold per axle, 2 bushings per caliper, 4 bushings per kit/axle
• Available front and rear calipers
• Features an o-ring grove and are supplied with caps to prevent moisture, dust, and debris into the bushing

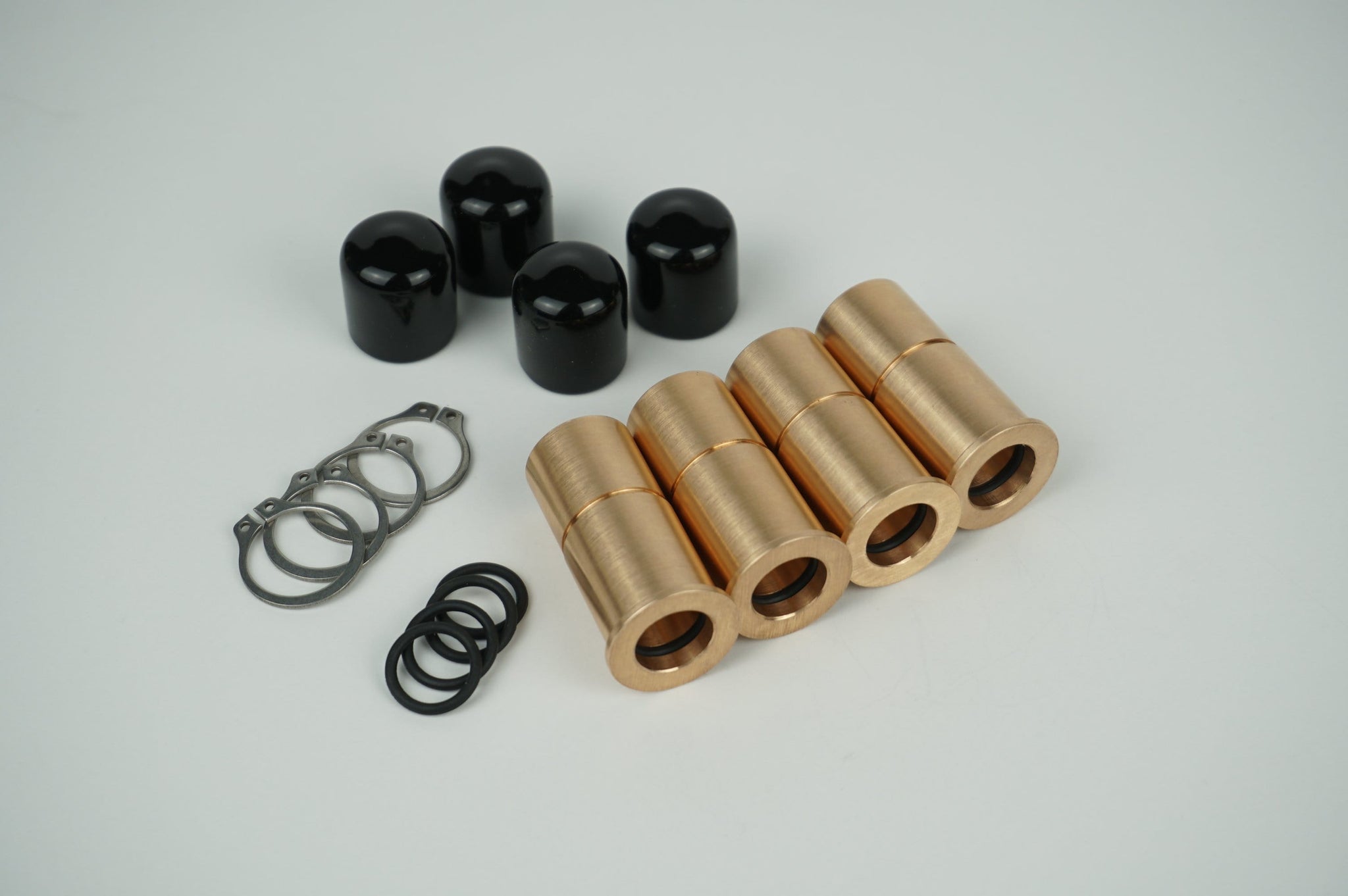

• Machined out of Brass, and we include high-temp o-rings & caps, and stainless snap-rings
• spare o-rings are included

Front Install Guide

Rear Install Guide

Note: Some front calipers have smaller caliper bushing bores. We highly recommend measuring the front caliper bores prior to purchasing. There are two standard sizes of bushings we offer for the front calipers. If your front caliper bores measure to around 0.700" +/- 0.010" then select the SMALL bore bushings. If your front caliper bores measure to around 0.725" +/- 0.010" then select the LARGE bore bushings. This measurement only needs to be taken on the front calipers (please remove any corrosion from the bores to prevent inaccurate measurements); the rear caliper bushings are just one size so no need to measure those. If you would prefer not to measure your calipers, you can order the LARGE bore bushings and bore the calipers to fit the bushings. Any questions regarding which selection to make, please contact us.
