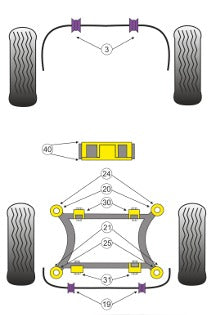

Diagram Reference #20

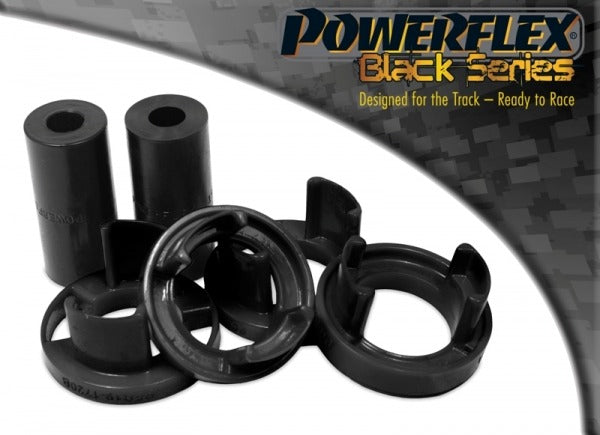

Ford Mustang (2015+) Rear Subframe Front Bushing Insert (Street)
These parts fit as inserts for OEM part number FR3C-5872-A PIA1.

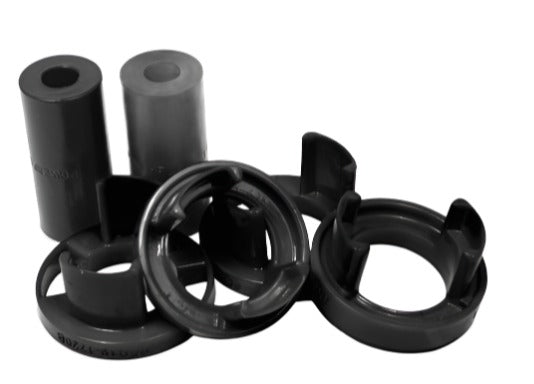

Contents (parts per pack):

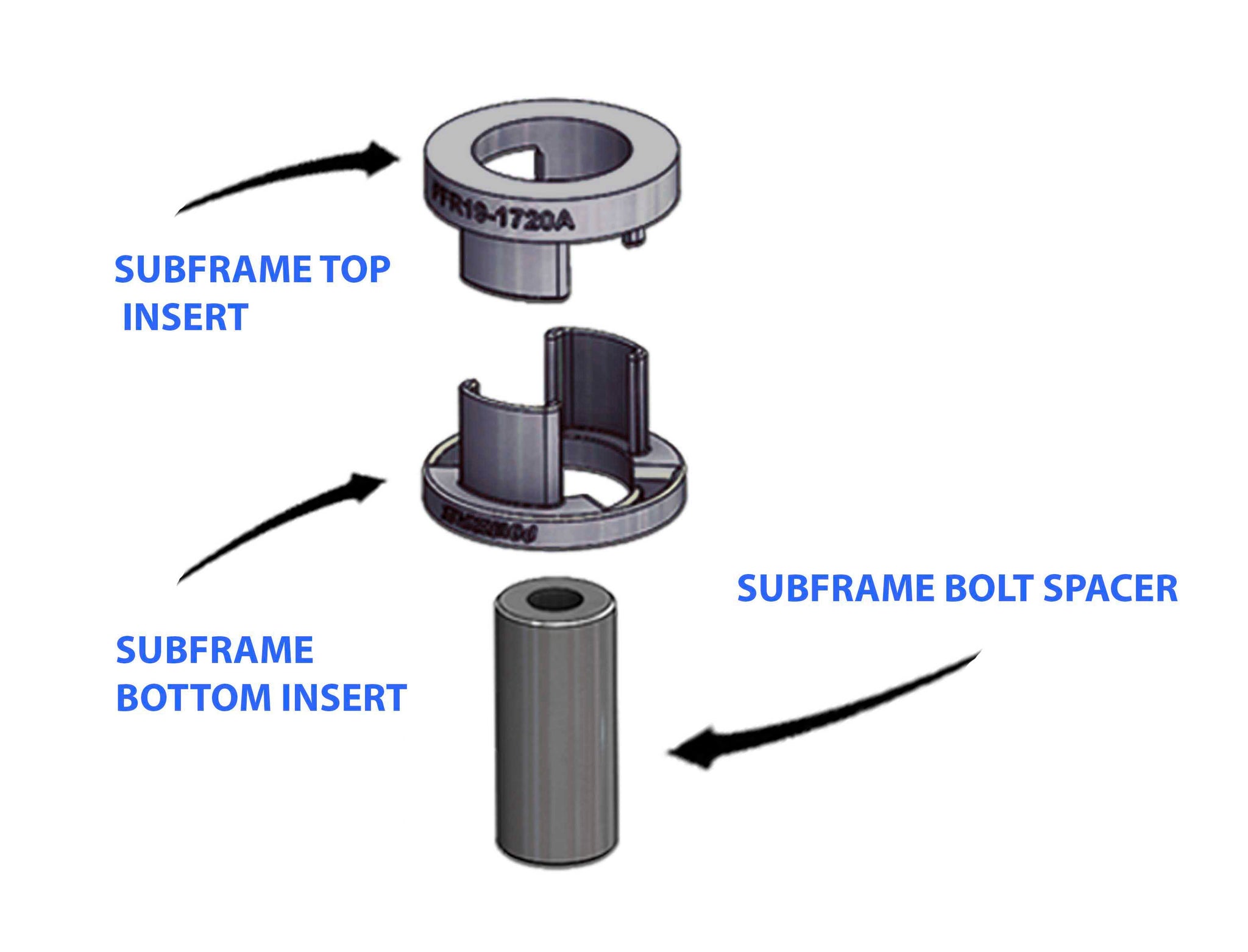

2x A Inserts 2x B Inserts 2x C Inserts 1 x Grease
Please read the complete fitting instructions and check package components before fitment. These fitting instructions are to be used as a guide and in conjunction with workshop manual.
How to install your Gen 6 Mustang subframe front bushing inserts:
1. Support rear subframe. Loosen all bolts on subframe. Remove front mount bolts compeletly to lower subframe to access the front mounts.
2. Clean any dirt or debris from around the rubber bush and voids. Apply some of the supplied grease on the inner face of the inserts.

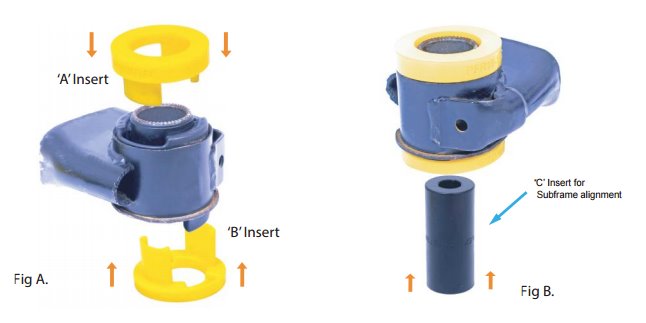

3. Fit A Insert from the top and fit B insert from the bottom on the mount Fig A.
4. Fit C insert into the bore of the mount from the bottom. Insert C functions as a subframe alignment insert. Fig B.
5. Refit subframe and tension all hardware to manufacturers recommended torque settings.
