HKS Turbo Timer X

HKS Turbo Timer X

What are the functions demonstrated by long-selling products with a cumulative total of 300,000 units ?

This turbo timer is exclusively for turbo vehicles that start the engine using the ignition key.

10 generations with turbo cars

Turbo timer, evolution of reliability 10th model released

Starting with the essentials for turbo cars...

The turbo timer
was developed to perform after-idling on turbo-equipped vehicles and prevent the bearings of the turbocharger from seizing up.

Aiming for BIG POWER & SAVE ENGINE...

1982-1985

All turbochargers are exposed to high-temperature hot air from the exhaust gases. Therefore, if the engine is suddenly turned off, it may cause damage or damage to the turbine body. After-idling is a must to ensure the longevity of the turbine. In order to meet these market needs, we have developed a turbo timer that can be used with confidence.

Nowadays, turbo car models have become the norm

1985-1987

A turbo vehicle that enables small displacement and high output. Manufacturers are also entering the era of turbos, where they are releasing turbo model cars one after another. Then, the design was redesigned to match the compatible model. Adopts a design that matches the dashboard. The functions have also improved operability and visibility, increasing the need for after-idling.

Pursuing evolution from the pioneer model

1987-1989

The ever-popular turbo timer has been made easier to use, lighter and more compact.
Easy setting with push switch. The display window is illuminated for easy viewing, improving visibility. 12V/24V shared.

Luxury model “Quest”

Limited Model

The first HKS turbo timer model to use a liquid crystal display.
The LCD display flashes green when the timer is on standby and flashes red when the timer is in operation, and counts down in 1-second increments.
Also, when the countdown starts, the alarm sounds and you can confirm that it is working.

Adopts a streamlined design to pursue a sense of unity with the interior.

1989-1994

The main body case is made of authentic ABS resin. In addition to the timer function, this model has a sophisticated design that takes into account the interior of the car.

2 modes, 2 ways, 2 crystals

1994-1996

Normal display and active display can be selected in timer mode and integration (ADD) mode.
The integration mode allows you to understand the engine operating time, which is extremely useful for maintenance that cannot be determined based on mileage.
Emphasizing the time system, it has a built-in crystal for operating the main body and a crystal for measuring time.

In addition to 2-mode/2-way display, it is equipped with a timer memory function.

1996-2000

You can select and set 14 different idling times. It can be set for a long time to prevent unnecessary idling.
Furthermore, the newly added memory function makes it easy to switch after idling depending on the driving condition, and it is possible to set 3 memories and 4 patterns.

2 types to choose from depending on usage, linear timer function

2000-2008

There are two types: TYPE-1, which is equipped with many functions and can be enjoyed, and Type-0, which is equipped with only basic functions.
The mode selection switch allows you to adapt to various situations. This is an all-round timer that is not limited by the specifications of turbo cars.

Pursuing functions and size that suit the compact era

2008-2018

By making it a separate type, we have increased the freedom of installation location. Furthermore, we pursued a sense of unity by using the same design and configuration (separate type) as EVC-S. In addition, the industry's first push start model has been added to the simultaneous model.

We have undergone numerous model changes and developed a variety of types.As
a result of pursuing what is truly needed...we have arrived at a simple model that specializes in timer functions.

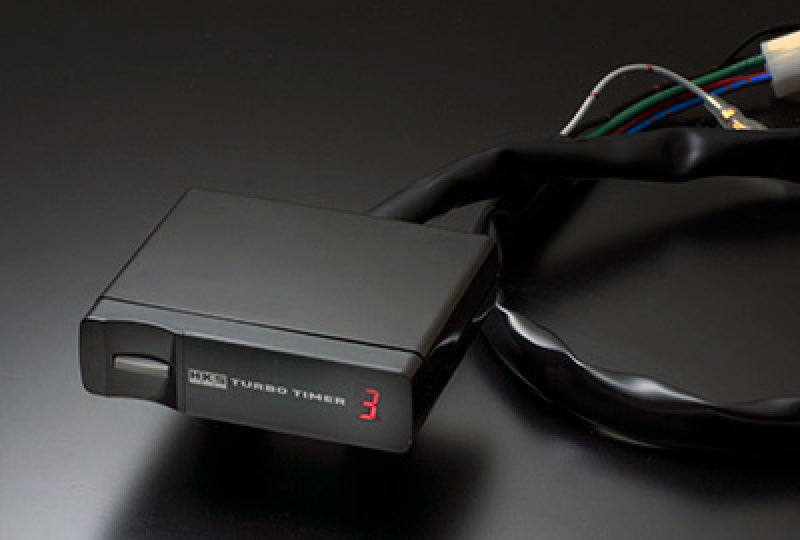

10th ModelA simple model with an emphasis on operability, born from a history of 35 years.

Car model: Turbo car (general purpose)
Code No.: 41001-AK012
Price (tax included): ¥10,780

Functions focused only on after-idling

Pursuing simplicity and ease of use

Simple, easy-to-use operation that allows you to change settings by pressing a switch.

For example , after idle for 1 minute, even for everyday use.

Performs idling that corresponds to everyday use such as city driving and commuting.
This is useful when you don't have time to attend after-idle.

For example , 3 minutes is a valid setting for after-idling after driving on a highway.

After-idling, such as when driving under continuous load on expressways, cools down the highly heated turbine and engine oil, and turns the engine off without putting any strain on the engine or turbine, improving the durability of the engine and the durability of the oil. It has the effect of increasing

For example , a setting that is effective for 5 minutes after idling when driving on a circuit.

The turbine and engine are at their peak due to the high load/high engine speed that is close to the engine's limit. To avoid accidentally stopping the engine after driving under high load, the turbo timer allows you to perform a reliable after-idle.

For example , for 10 minutes, to maintain the temperature inside the car when shopping.

Since you can lock the door while the engine is running, you can maintain the temperature inside the car and reduce the burden on the battery caused by the hazard lights, giving you peace of mind when you leave the car for about 10 minutes.

For example , it can be used for 30 minutes to check the temperature inside the car in summer or winter.

After-idling can be set for up to 30 minutes. Depending on the parking location, you can idle for long periods of time and maintain/secure the temperature inside the vehicle.
(Please note that there are some areas and facilities where idling for long periods of time is prohibited due to local regulations.)

SPEC

■Function

• Red LED for numerical display and operation keys are combined into one, simplifying visibility and operability.
• Timer time can be selected from 1, 3, 5, 10, and 30 minutes. Can be selected up to 30 minutes.
• Select reliable time setting with manual setting
• Handbrake sensing safety circuit
• Equipped with large capacity relay equivalent to current product
• The timer function stops when the constant voltage is unstable, such as when the battery deteriorates.

■Compatible vehicles: Turbo vehicles that start the engine with the ignition key.

• Push start vehicle not available

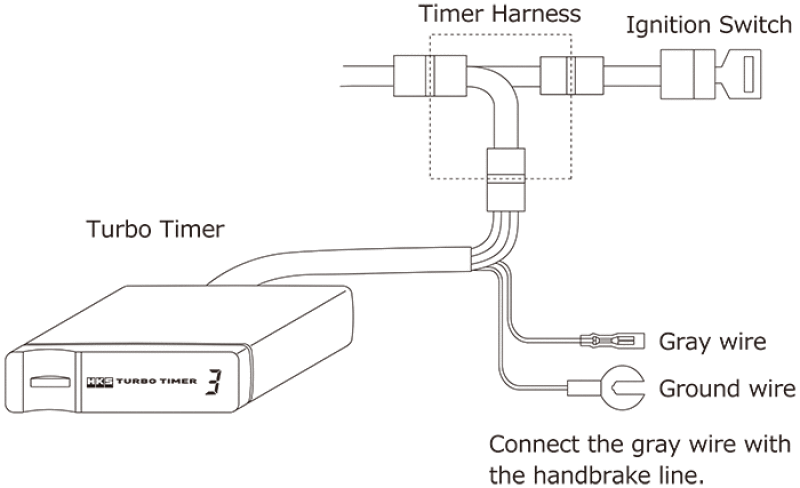

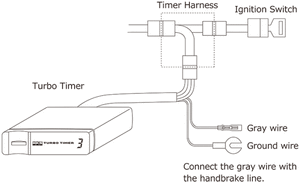

• The conventional timer harness can be used as is.
  *There are some car models that cannot be used. Please be sure to check the compatibility chart for each vehicle model before purchasing.

■Features

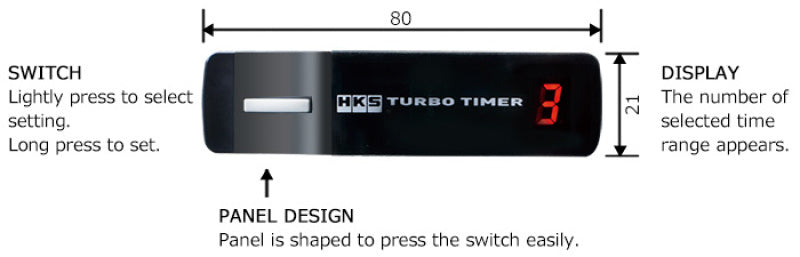

• Adopts display and operation buttons specialized for timer function
• Comfortable operation with large buttons that give a sense of moderation
• The area around the buttons is shaped so that your
  fingers can easily fit into them. → The structure makes it easy to operate, especially when you are fumbling around at night.
• Sudden setting changes can be made reliably with simple operations.
• Simple 1-digit display that makes it easy to understand the timer setting time
• Simple setting that changes the time every time you press the button
  → Intuitive operation without hesitation
• You can also turn off the light by setting it to OFF mode (buzzer sound is also OFF)

●Extension of timer time

• The timer can be set for up to 30 minutes.You
  can set a timer that is easy to use, not only to protect the turbocharger, but also to maintain the temperature inside the car in summer and winter.
