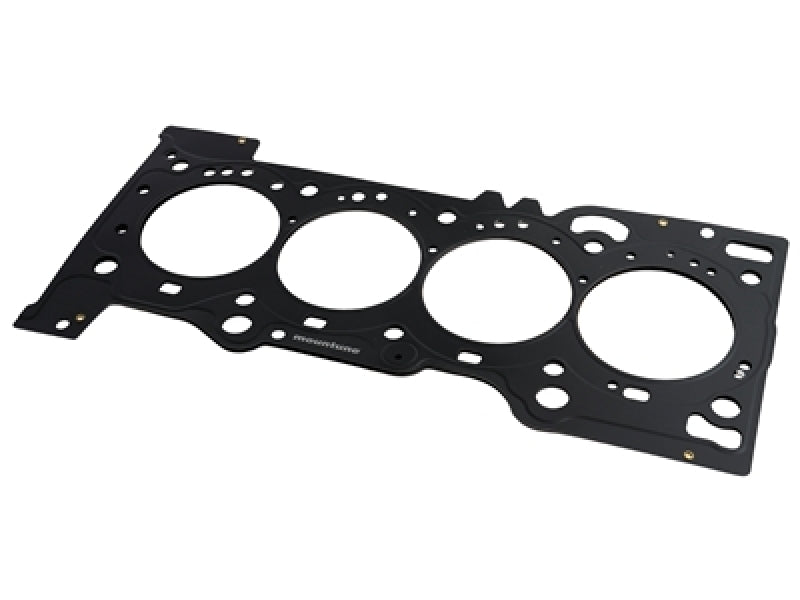

Mountune Ford 2.3L Ecoboost ICR Head Gasket
Mountune Integrated Compression Ring (ICR) Head Gasket for Focus RS
Applications:
- All Ford EcoBoost 2.3L Engines
- 2016-2018 Ford Ford Focus RS
- 2015-2020 Ford Mustang Ecoboost
Mountune ICR Head Gasket Features:
- Individual die cut layers of stainless steel with superior consistency compared to laser cut gaskets
- Pre-coated stainless steel with a 0.27 micron layer of HR-180/FKM rubber ensures consistent distribution of coating with no high or low areas
- Die cut manufacturing process ensures smooth edges, unlike laser cut gasket
- Manufacturing dimensional tolerance of +/- 0.001”
Mountune high-performance

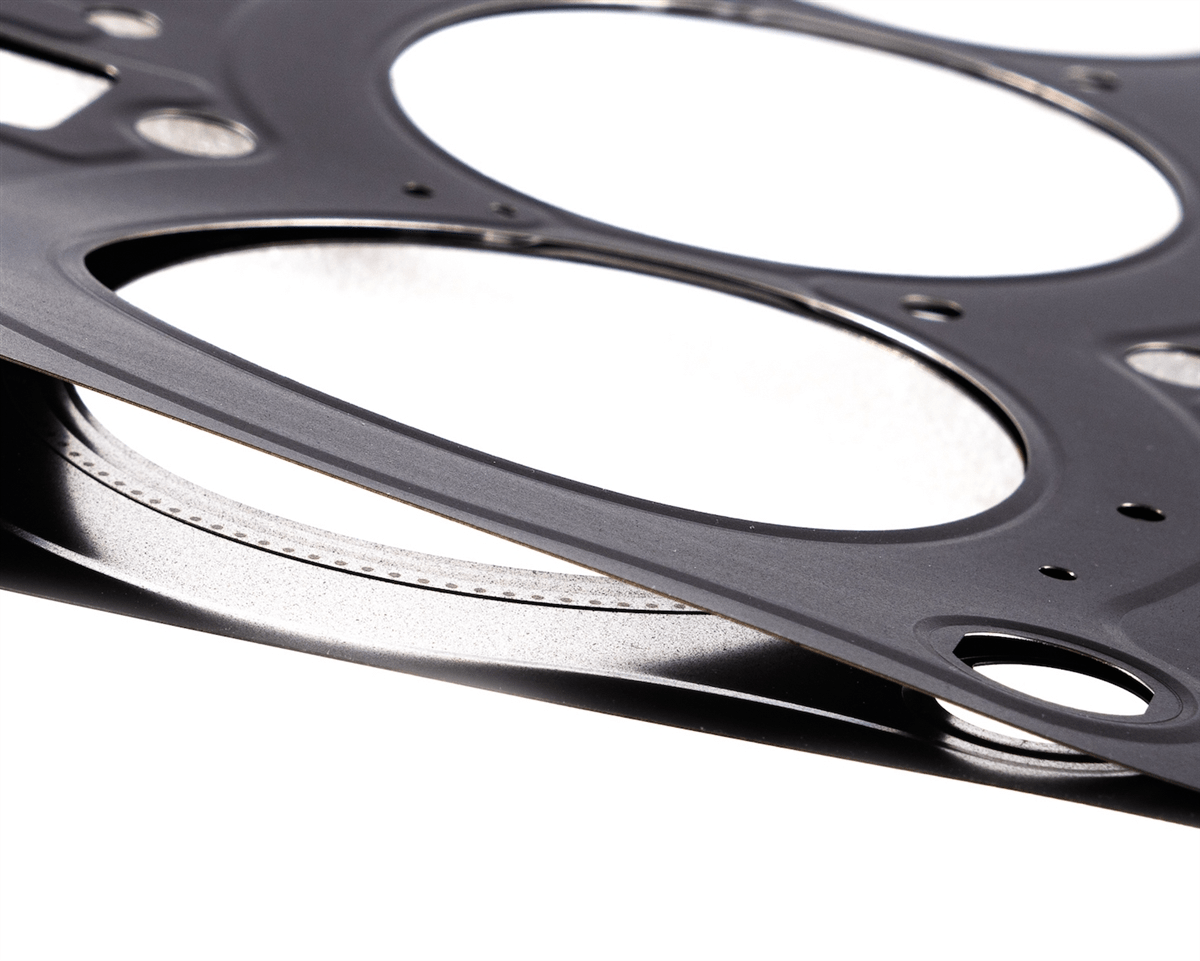

Integrated Compression Ring (ICR) head gaskets are engineered to seal in power under the most demanding and high boost conditions. Relying on our vast motorsport experience with Touring Cars, Rally and Rallycross engines, our development team designed a cylinder sealing solution that would stand up to extreme boost and cylinder pressure yet be functional for daily use. Each gasket includes a welded Integrated Compression Ring layer with unique features to ensure maximum reliable engine performance.
Engineered from SUS 301 chromium-nickel stainless steel with welded Integrated Compression Ring layer, each application features superior sealing compared to conventional multi-layer steel gaskets. All Mountune ICR Head Gaskets are manufactured from pre-coated die cut stainless steel resulting in uniform coating distribution and consistent shape.
Specifications:
Bore: 90.0mm
Thickness: 0.85mm
