With F1 level piston speed and super high rpm characteristics, the S2000 is a great representation of Japanese sports cars. This kit has been designed to try and compliment these characteristics and deliver more power as the engine rpm increases creating a forced induction system that those who love Honda engines will agree with.
Smooth torque delivery leads to ease of use which makes the HKS GT Supercharger a great match for the engine. We would like those who want more power but feel resistance to forced induction on a Honda to experience this setup which has acceleration feel reminiscent of a tuned NA engine.

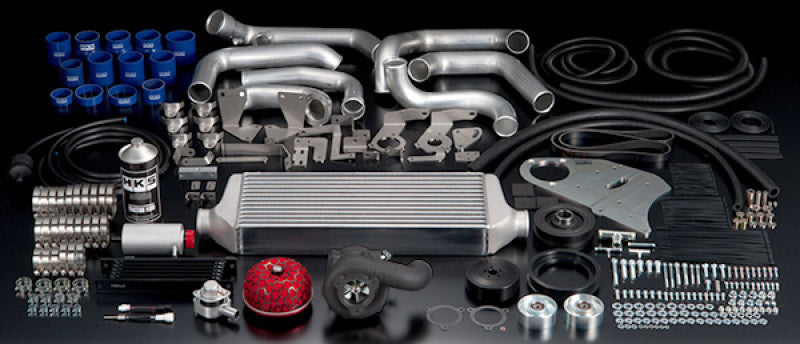

S/C Unit, S/C Oil Parts, S/C Fitting Parts, S/C unit Pulley, Belt, Suction Pipe, Intercooler, Intercooler Pipe (Includes relief valve)
 |
 |
 |
 |
 |
* GT2 S/C Pro Kit requires a separate engine control system in order to operate correctly
* φ58 restrictor included in the GT2 S/C Pro kit is for US specification vehicles and may cause damage to Japanese specification cars. Please adjust restrictor size to approximately φ40 for 300ps output. Test vehicle used φ44 restrictor included with fuel upgrade kit.

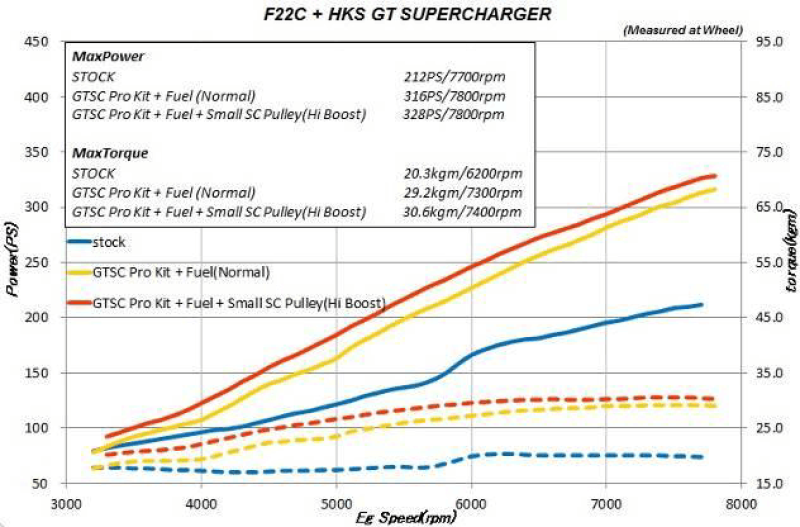

With GT S/C Pro Kit you can have more than 300ps and 30kgf・m.
PARTS
Large Volume Fuel Pump, Large Volume Injector, Restrictor(φ44)
The data is pre-installed for Flash Editor for AP2 if used GT Supercharger kit and Fuel Upgrade kit together. It's very reasonable and easy to install. (More information available of Flash Editor in the website)
FUEL UPGRADE KIT
| Vehicle | Model | Engine | Model Year | Code No. | Remarks |
| S2000 | AP2 | F22C | 05/11-07/9 | 14007-AH002 | for GT2 S/C KIT |
FLASH EDITOR
| Vehicle | Model | Engine | Model Year | Code No. | Remarks |
| S2000 | AP2 | F22C | 05/11-07/9 | 42015-AH001 | For fuel upgrade kit installed vehicles |
●Fuel & Control device setting
| AP1 | AP2 | |
| GT2 SUPERCHARGER | ○ 12001-AH010 |
○ 12001-AH010 |
| Fuel Upgrade Kit (sold separate) |
○ 14007-AH006 |
○ 14007-AH002 |
| Control (sold separate) |
× Need such as F-CON iS for setting. |
○ FLASH EDITOR 42015-AH001 * |
| Remark | If you are not using with Fuel Upgrade Kit, you need to make a restrictor. | * If you are not using with Fuel Upgrade Kit, you need to make a restrictor and Flash Editor setting. |
| Vehicle | Classification | Model | Engine | Model Year | S/C SIZE | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|
| S2000 | AP2 | F22C | 05/11 |
