HKS GT2 S/C SYSTEM Pro Honda CR-Z ZF1 CR-Z Ver2

“HKS Supercharger System for Honda CR-Z” has been highly praised since it was released.
The Pro Kit is redesigned. “Over 250PS” is still feasible with the upgraded engine.
An Upgrade Kit is also available for those who already installed the exiting kits.

【FEATURES】

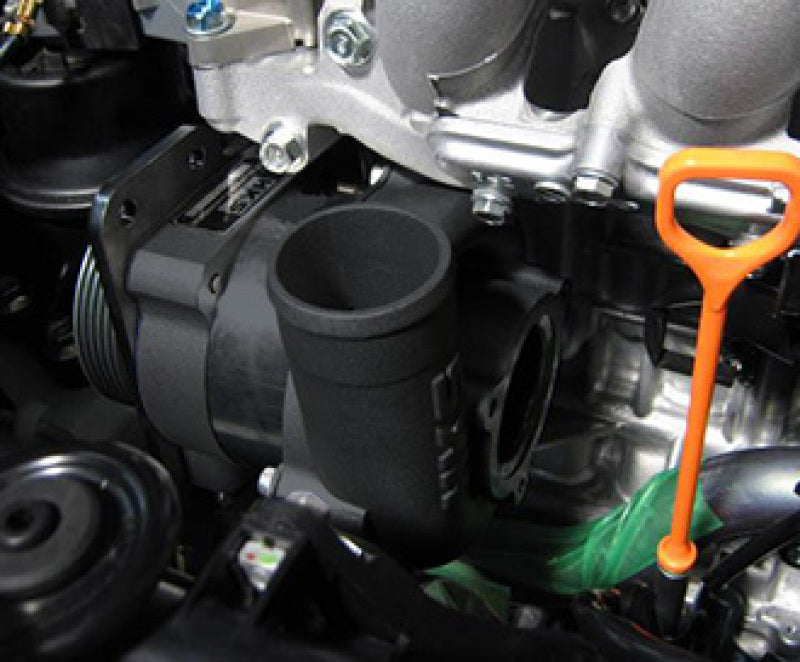

• HKS GT2-7040 which was originally used for the Max Speed Project is included.
• Output of 157HP can be achieved with the stock I/J, and with the Fuel Upgrade kit and an engine control device, it can exceed 200HP.
• Modification of the engine is not required up to 200HP.（For high load driving such as circuit driving, it is recommended to upgrade the engine parts with HKS products.)
• Over 250PS is achievable with the upgraded engine internals.

【PERFORMANCE】

○Output Performance ...The engine output increases by approx.60ps, and torque increases by 5kg･m compared to the stock engine!!

(Test Vehicle: CR-Z(ZF1) MT)

* These are results of in-house test. Results may vary depending on measuring instruments.

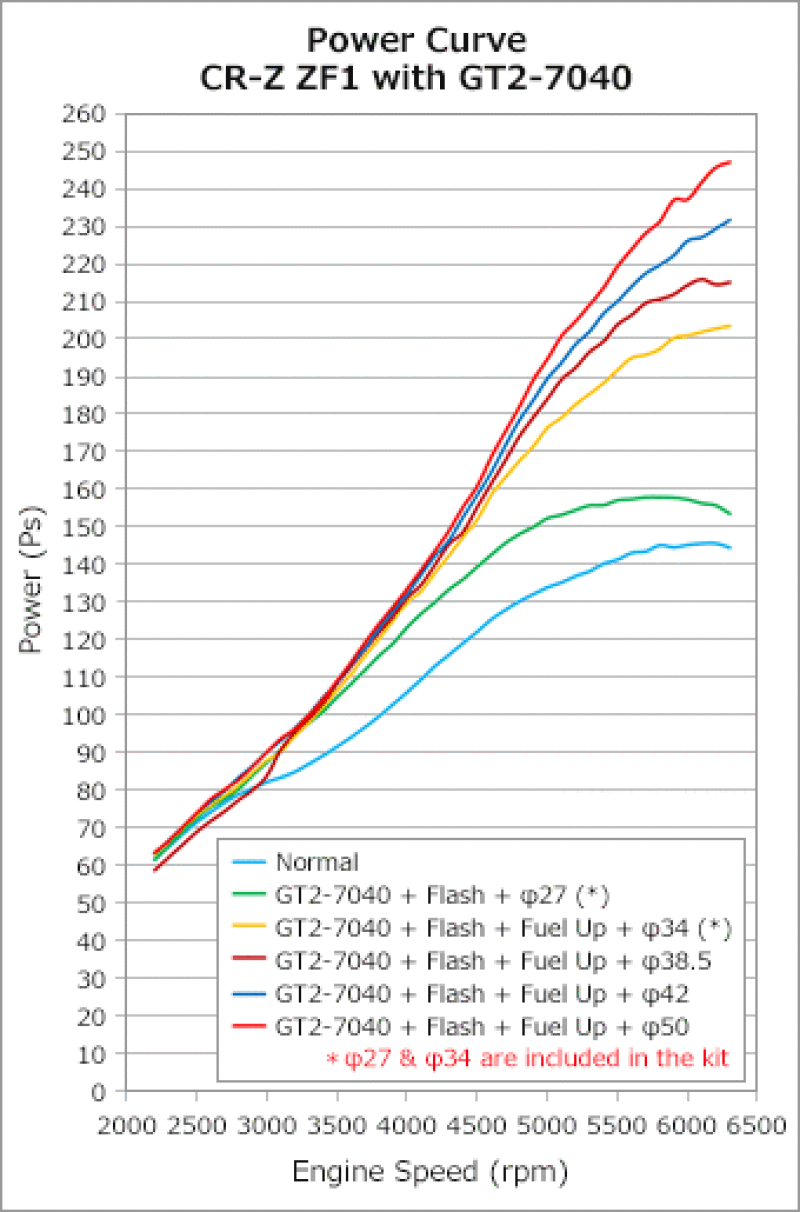

* For the power graph, please refer to the attached sheet.

○Installation of this kit has only slight effect on fuel economy!!

【Remarks】

• The output shown in these graphs are based on our in-house tests by Dyno Jet.
• This kit's output is adjusted by the intake restrictor.
• During the tests, the φ38.5mm, φ42mm, and φ50mm restrictors were used besides the provided φ27mm and φ34mm restrictors to compare the results.
• During the in-house tests, the injectors included in Fuel Upgrade Kit full duty at approximately 0.75k～0.8k boost.
  (Boost pressure may vary depending on the vehicle's specifications.)

HKS CR- ZF-1 Spec Sheet

【KIT PARTS】

【GT SUPERCHARGER Pro KIT】

* All necessary installation parts are included in the kit. (An engine control part is not included.)

【FUEL UPGRADE KIT】

○Kit Parts Large Capacity Injectors Restrictor (φ34)

【FLASH EDITOR】

Data suitable for the performance of this kit is available. To use Flash Editor with this kit, the initialization tool (USB) included in the kit must be used. The following is the applicable ID as of July, 2015: ECU ID: RTW3090M1 & RTWJ050M1 ※This product was designed on a JDM vehicle and has not yet been tested in other markets.

【Notes Prior to Installation】

• Replace the spark plugs with higher heat range. (It's recommended to use HKS Super Fire Racing M40i or higher.)
• High octane gasoline must be used.
• Since the factory washer tank must be removed to install this kit, DENSO washer tank (160200-5070) or a similar item may be required.
• Estimated installation time is 6 to 8 hours.
• The noise may exceed the local legal regulation level depending on the exhaust system used.
